ECG M12 4 pin elbow contact for PCB with two nuts quick release connectors

  • 1
  • 2
  • 3

Brand Name : MOCO

Model Number : 1BZ2G04CLV

Certification : UL/CE/RoHs/ISO9001

Place of Origin : Shezhen, China

MOQ : 10pcs

Payment Terms : T/T, Paypal , Western Union

Supply Ability : 200000pcs/month

Delivery Time : 7-10 working days after simple confirmation

Packaging Details : Each connector in a PE bag. every 50 or 100 pcs of connectors in a small box (size:20cm*15cm*6cm), every 6 small boxes in a carton(size:30cm*20cm*20cm)

product name : ECG M12 4 pin elbow contact for PCB with two nuts quick release connectors

gender : female

insulator material : PPS

Endurance (Shell) : 5000 mating cycles

Vibration : 15 g [10 Hz - 2000 Hz]

number of contacts : 4 pins

Contact Now

ECG M12 4 pin elbow contact for PCB with two nuts quick release connectors

Main features:

-Security of the push-pull self-latching system;

-Solder or print contacts(straight or elbow);

- High packing density for space saving;

-Keying system (G key standard) for connector alignment;

- 360° screening for full EMC shielding.

Descriptions:

00 series is designed for less space, usually used in audio-video area. Z2 is a fixed socket with two nuts , straight or elbow contact for PCB.

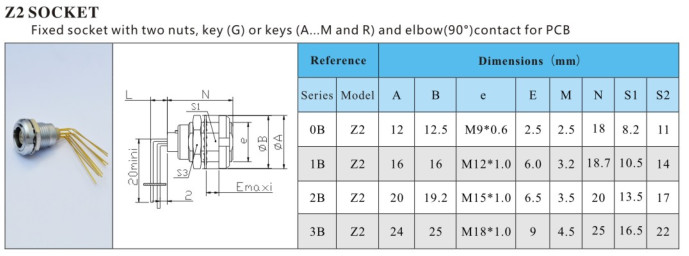

Dimensions and Parameters

ECG M12 4 pin elbow contact for PCB with two nuts quick release connectors

MOCO P / N 00BZ2G04CLV
Configuration Brass (gold plated)
Insulator PPS
Endurance (Shell) 5000 mating cycles
Temp (min) -40 deg
Temp (max) 200 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
Vibration 15 g [10 Hz - 2000 Hz]
Shock Resistance 100 g [ 6 ms]
Salt Spray Corrosion >144 hr
IP Rating 50
Shielding (min) 75 dB (10 MHz)
P op (max) 60 bar (870 psi)

We also provide cable assembly service.

If you have any interests, please feel free to contact us!

Contact us today, we are looking forward to serving you!
