1B 10 Pins Receptacle Circular Push Pull Connectors

Product Categories
Shenzhen MOCO Interconnect Co., Ltd.
Contact Now

1B 10 Pins Receptacle Circular Push Pull Connectors

  • 1
  • 2
  • 3

Brand Name : MOCO

Model Number : EGG 1B 310

Certification : UL/CE/RoHs/ISO9001

Place of Origin : Shezhen, China

MOQ : 10pcs

Payment Terms : T/T, Paypal, , Western Union

Supply Ability : 200000pcs/month

Delivery Time : 7-10 working days after simple confirmation

Packaging Details : Each connector in a PE bag. every 50 or 100 pcs of connectors in a small box (size:20cm*15cm*6cm), every 6 small boxes in a carton(size:30cm*20cm*20cm)

Product name : 1B 10 pins receptacle circular push pull connector

number of pin : 10 pin

insulator material : PPS

Endurance (Shell) : 5000 mating cycles

Salt Spray Corrosion : >144 hr

IP Rating : 50

Contact Now

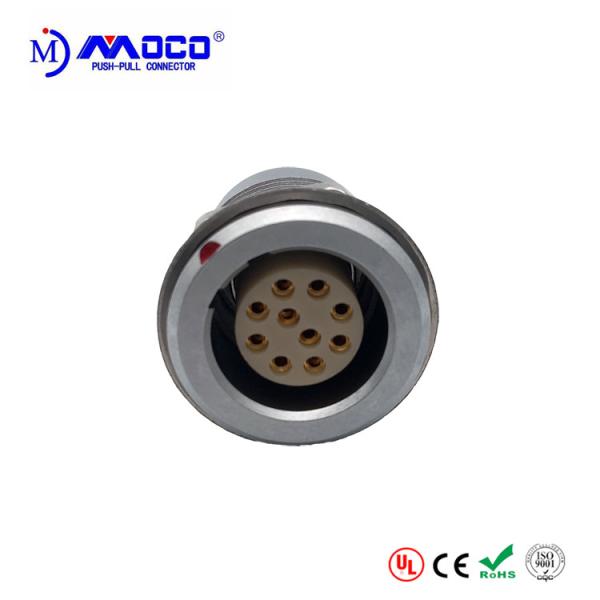

1B 10 pins receptacle circular push pull connector

Description

Z1 is fixed socket and a classical female circular connector. You can pick the right size you want according to your panel cut-outs and other parameters. 1B series 2 - 16 pins are in stock.

Main features:

- Security of the push-pull self-latching system;

- Solder or print contacts(straight or elbow);

- Keying system for connector alignment;

- Keying system(G key standard) for connector alignment;

- 360°screening for full EMC shielding;

Dimensions and Parameters

1B 10 Pins Receptacle Circular Push Pull Connectors

MOCO P / N 1BZ1G10CLL
Insert 10 low voltage
Configuration Brass (gold plated)
Insulator PPS
Endurance (Shell) 5000 mating cycles
Temp (min) -40 deg
Temp (max) 200 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
Vibration 15 g [10 Hz - 2000 Hz]
Shock Resistance 100 g [ 6 ms]
Salt Spray Corrosion >144 hr
IP Rating 50
Shielding (min) 75 dB (10 MHz)
P op (max) 60 bar (870 psi)

1B 10 Pins Receptacle Circular Push Pull ConnectorsMOCO in Shenzhen 2018 CITE

We also provide cable assembly service!

If you have any interests, please feel free to contact us!

Contact us today, we are looking forward to serving you!
